High Density Closed Rack Solutions| Netrack - Closed High Density Server Racks-with Seismic Rating- NRSs Series (NRSs 600 Series)
Model No :
NRSs 600 Series
Part Code :
NRSs 600 Series

Overview

NRSs 600 Series is Ultra rigid multi separate room racks for high density computer program in data centers & server rooms specially designed for seismic zone. The seismic rack manufactured out of steel sheet, punched, formed, welded and Powder coated with highest quality standards under strict ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to secure highest quality product.Connected with vented top cover with fan mounting provision Front Glass or with a row of holes Metal Door with Lock & Key and Back Vented with a row of holes Metal Door with Lock & key and partially vented or Plain side panels 1200 deep rack will be configured with dual side panel.

Standard for racks setup will be welded to ultra-rigid flexible frame with 4 no Pillars of 14 Gauge steel sheet 5 folded profile welded to top and bottom ribbed strengthened or added support to frame also/and supported depth wise by welding 6 no depth rail 4 folded 75mm 14 Gauge profile & diagonally strengthened or added support to by 4 no of 4 folded 50mm 14 gauge profile. Braced to floor/ raised floor with stimulating/interesting bolts and additionally braced on top by runway to rigid wall Pillar.

Available in 42RU ~ 47RU Versions with 650, 800, 1000 & 1200 Depth setups 600 & 800 Width setups.

Features
-UL Certified
-State-of-the-art manufacturing methods provide the best product quality and -fastest delivery in the industry
-100% assured compatibility with all equipments conforming to DIN 41494 (General -industrial standard for equipments)
-Powder coated finish with Seven tank pretreatment process meeting IS
-Conforms to DIN 41494 or equivalent EIA / ISO / EN standard
-Designed to NEBS™ Zone 4 via Telecordia GR-63-CORE
-Adjustable mounting depth
-Numbered U positions,
-Universal 25MM Pitch Holes For ETSI Standard Racks
-Grounding & Bonding Options
-Earthing continuity Kit
-2 or 4 Fan module Mount Provision on top cover
-4 No Adjustable, 19” verticals with punched 9mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space

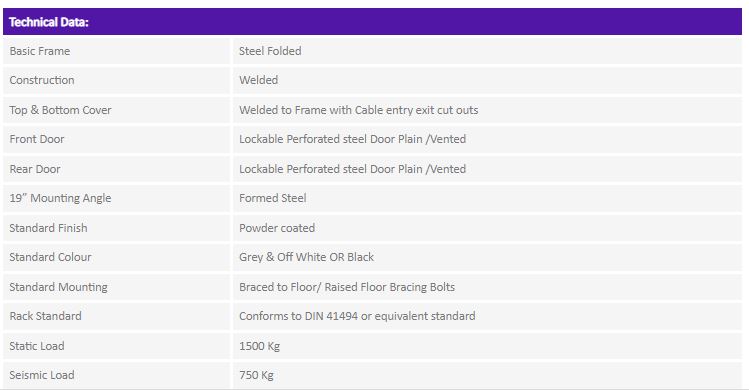

Technical Specifications
-Basic Frame:- Steel Folded
-Construction:- Welded
-Top & Bottom Cover:- Welded to Frame with Cable entry exit cut outs
-Front Door:- Lockable Perforated steel Door Plain /Vented
-Rear Door:- Lockable Perforated steel Door Plain /Vented
-19” Mounting Angle:- Formed Steel
-Standard Finish:- Powder coated
-Standard Colour:- Grey & Off White OR Black
-Standard Mounting:- Braced to Floor/ Raised Floor Bracing Bolts
-Rack Standard:- Conforms to DIN 41494 or equivalent standard
-Static Load:- 1500 Kg
-Seismic Load:- 750 Kg
